Material Dock - Trio

Assembly Instructions

Parts Needed: Wood Base, Cork Apple Watch Insert, Upright Support, Screwdriver, Apple MagSafe Charger (2), Apple Watch Charger.

Step 1: Affix a MagSafe charger to the Upright Support.

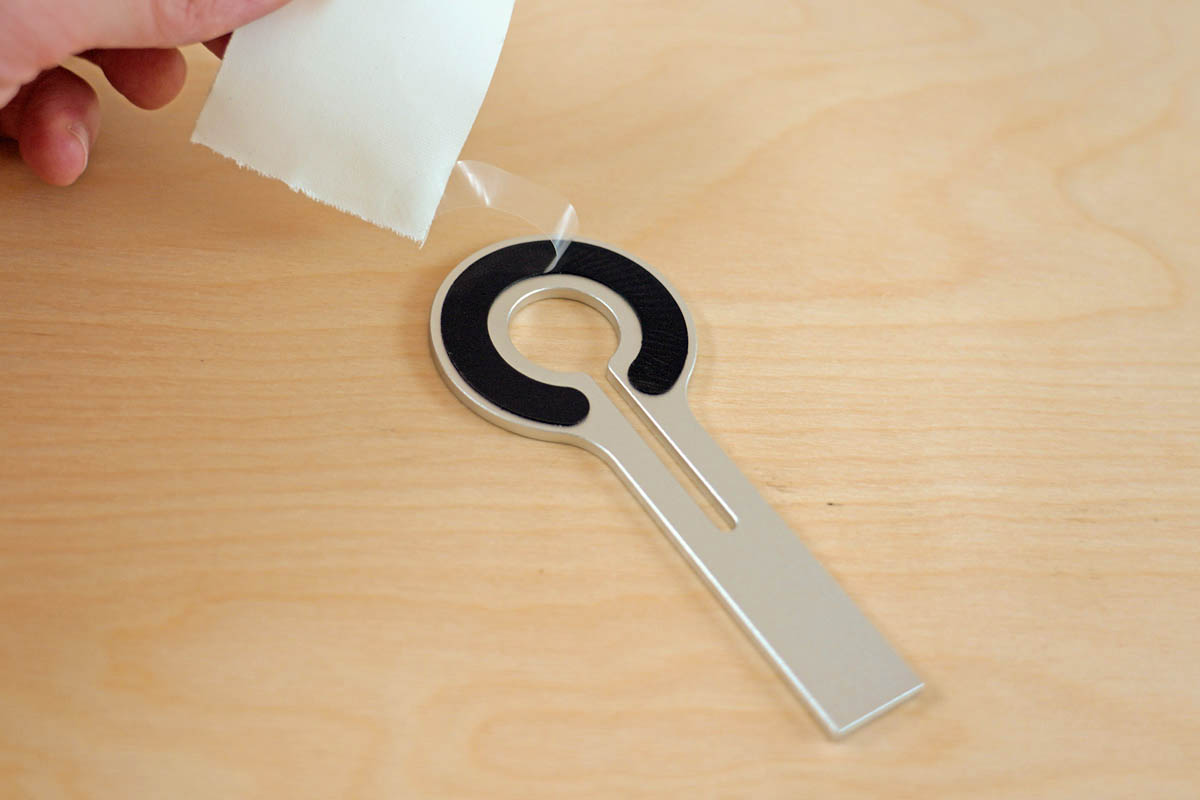

Remove the clear film from the micro-suction pad. (Using a piece of tape makes it easy.)

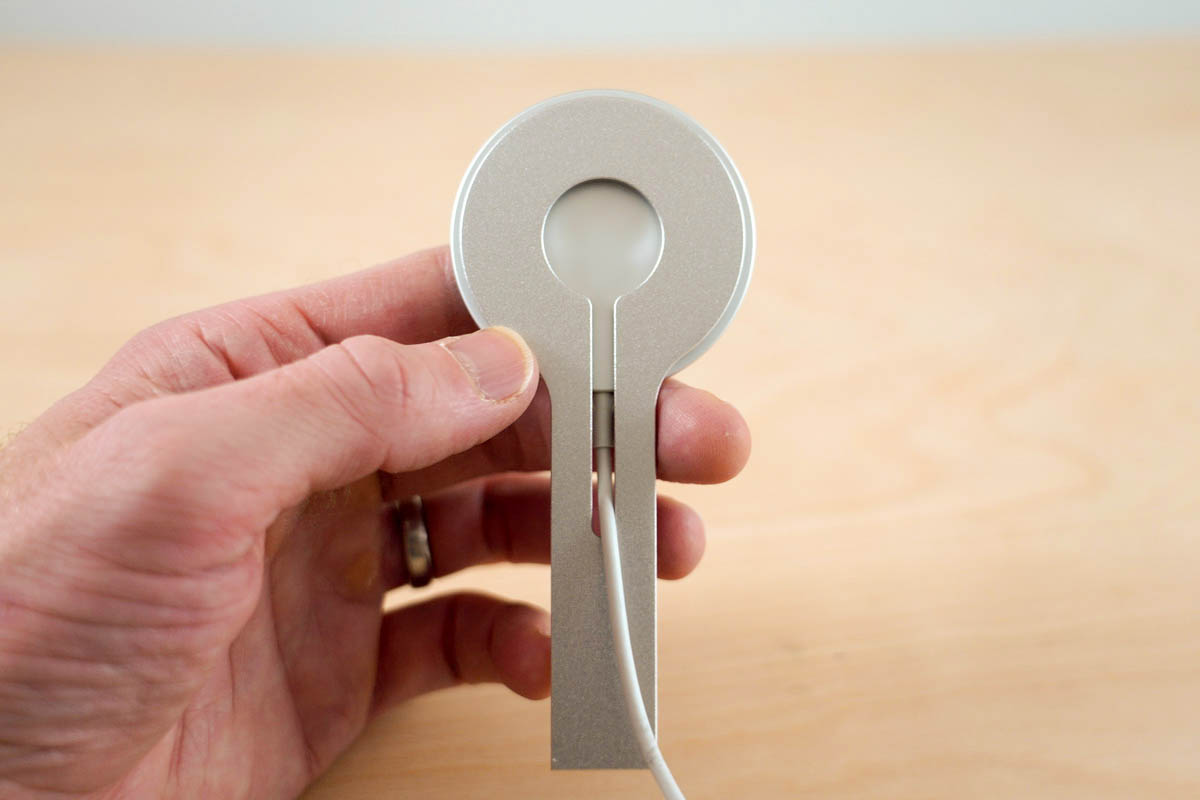

Feed the cable through the hole, then press the MagSafe puck onto the micro-suction pad, visually centering it.

Step 2. Attach the Upright Support to dock base.

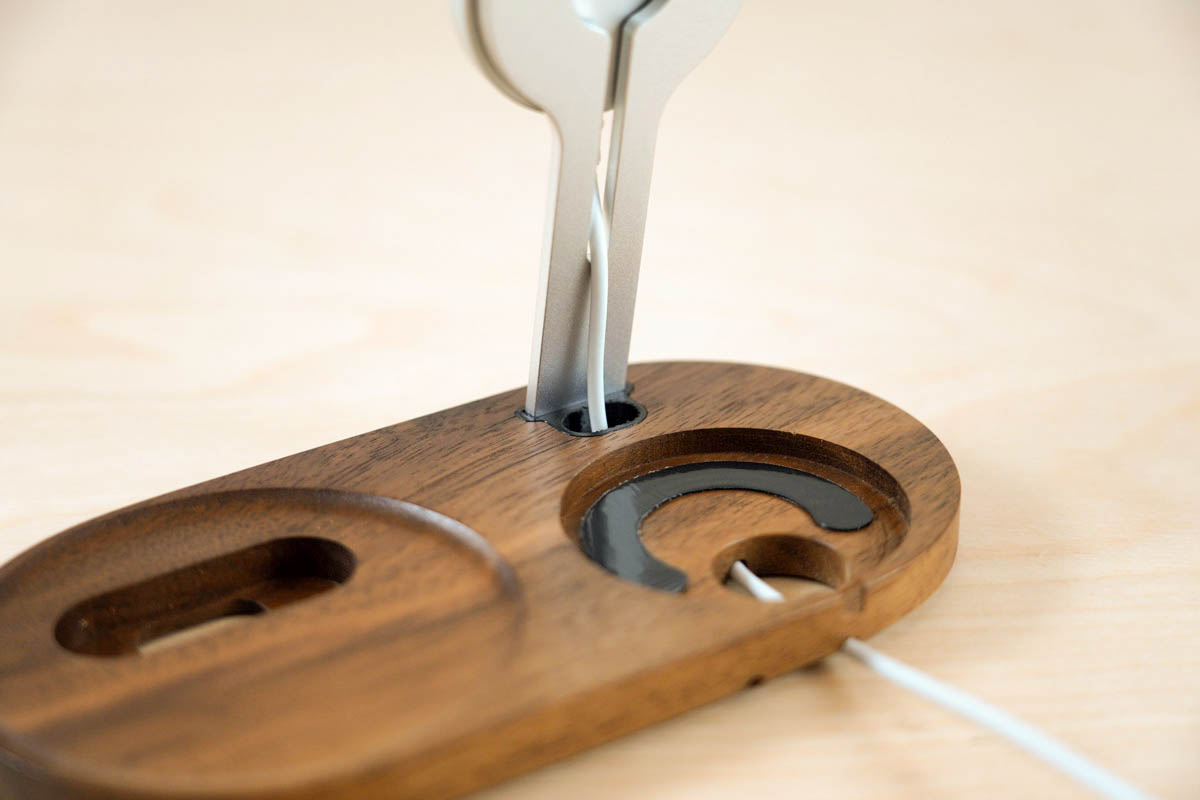

Feed the cable through the hole in the base, then position the Upright Support into the slot, with the MagSafe facing forward.

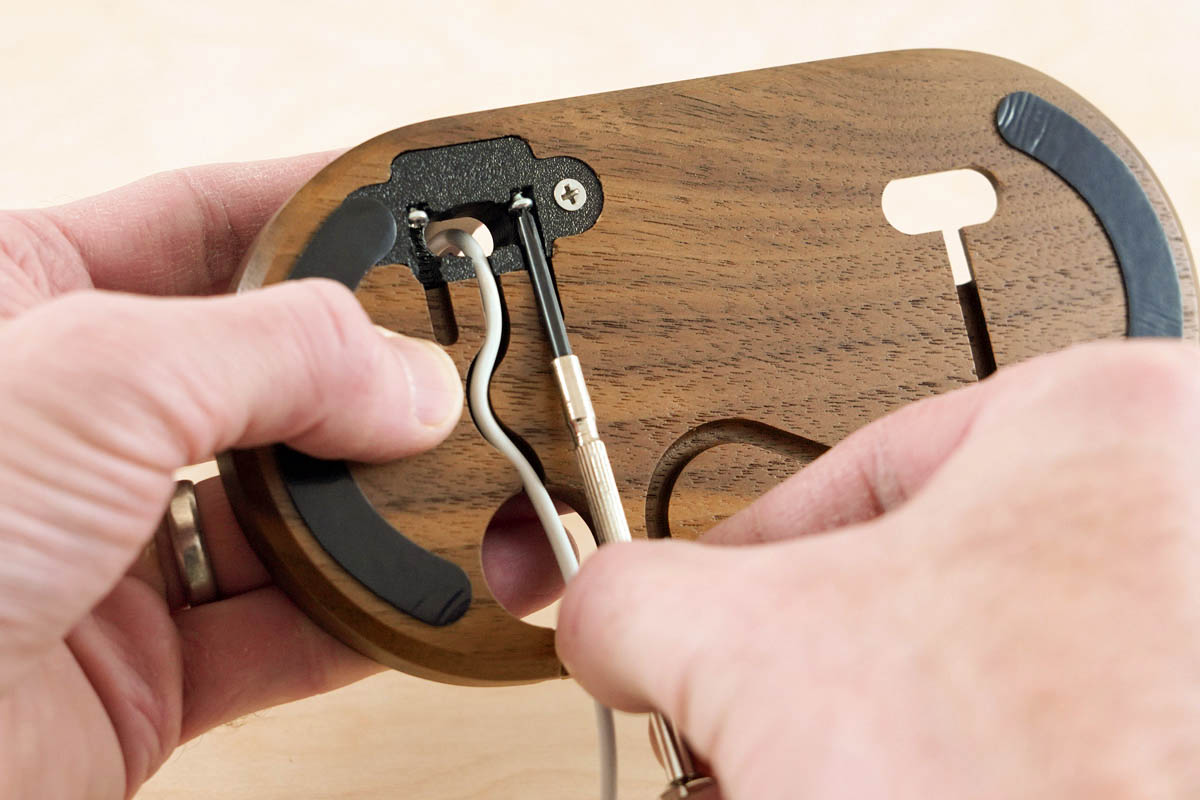

Holding the Upright Support in place, turn the dock upside down and tighten the two screws to secure it. Don't over tighten. If the Upright Support is held firmly against the bottom of the hole, it should be straight.

Step 3. Attach the other MagSafe charger to the wood base.

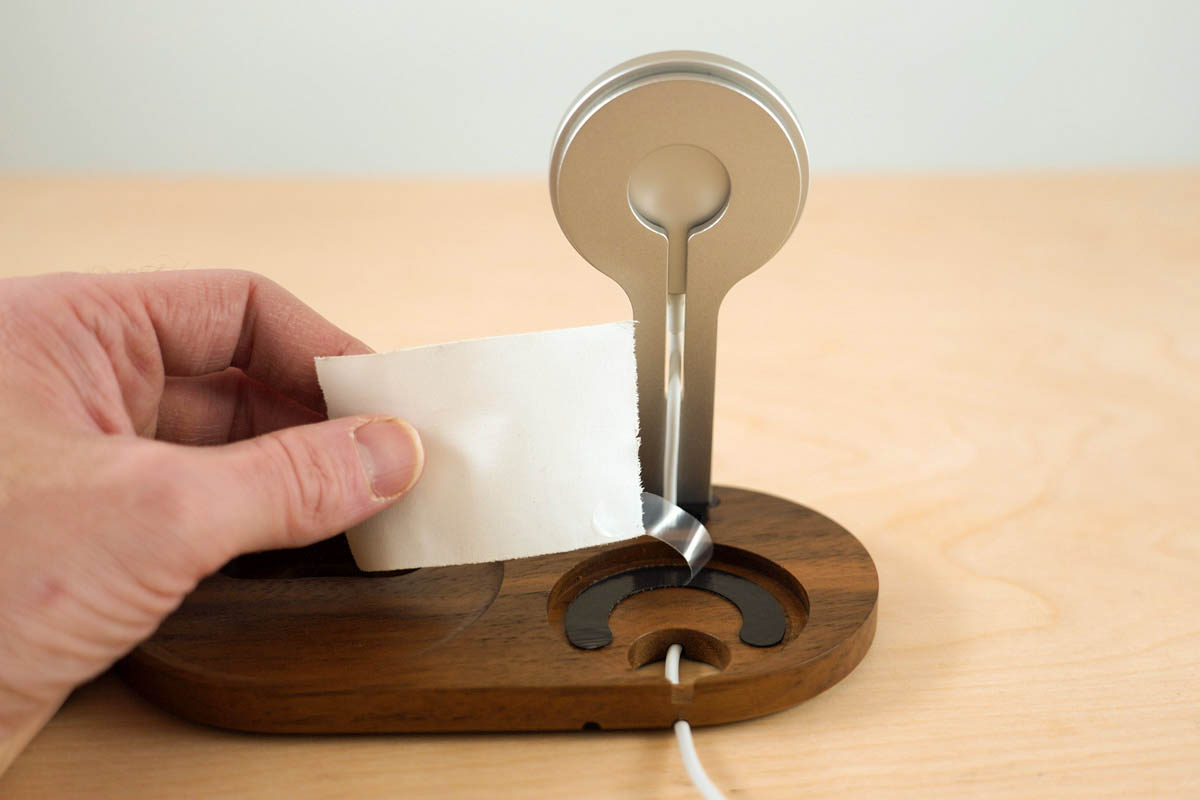

Remove the clear film from the micro-suction pad. (Again, using a piece of tape makes it easy.)

Place the MagSafe cable onto the newly exposed micro-suction pad.

Step 4: Attach the Apple Watch charger to the wood base.

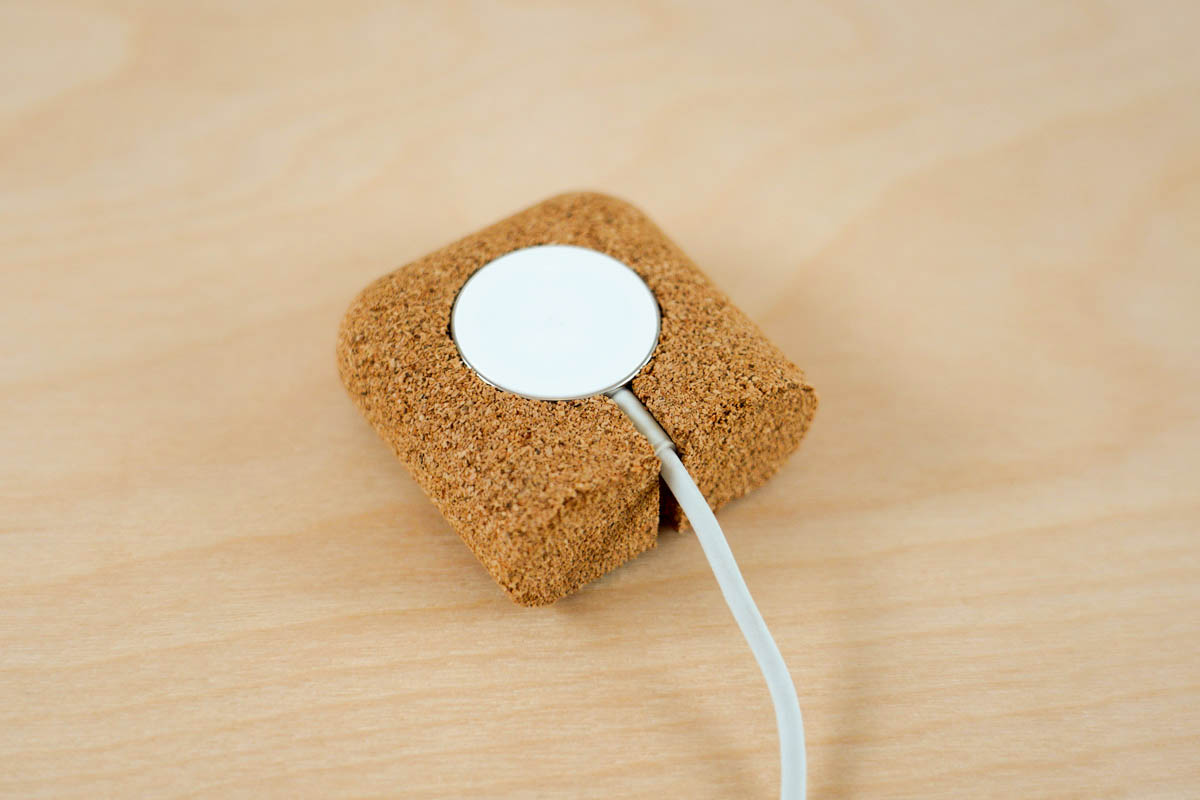

Insert the Apple Watch puck into the cork piece. It's a tight fit, so you may need to massage it in.

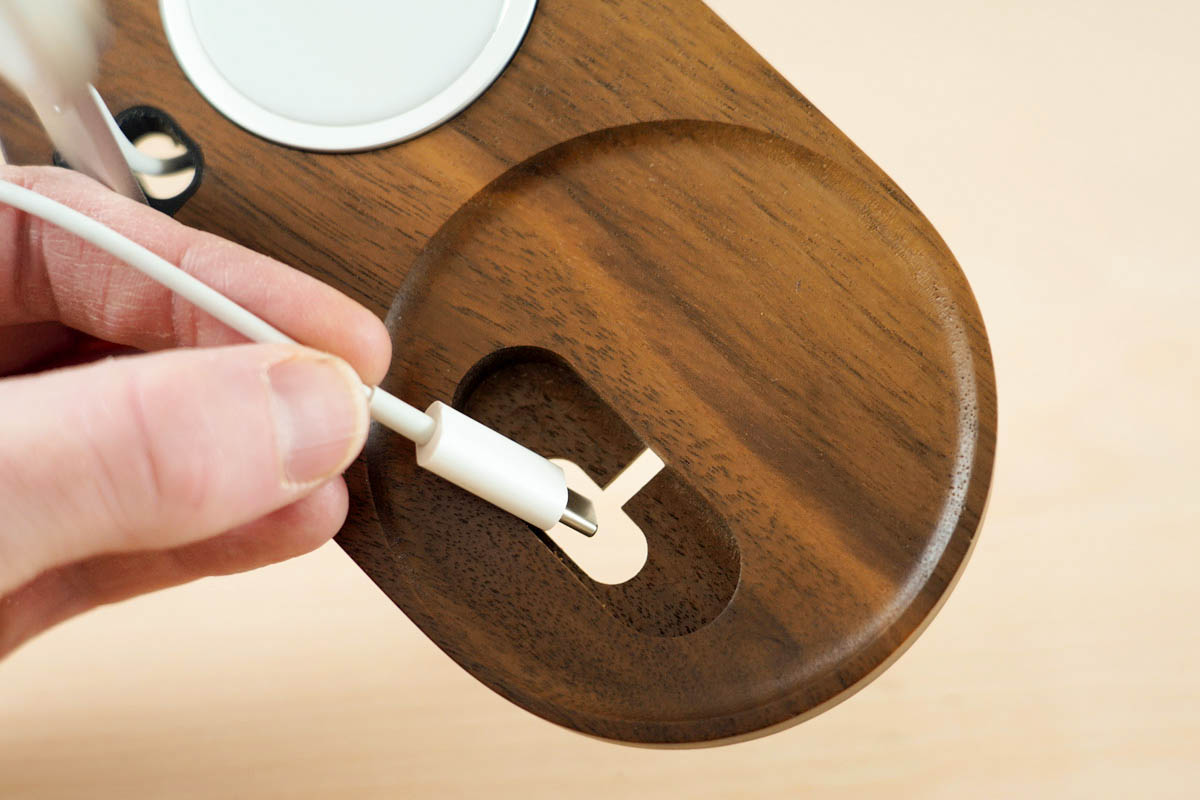

Thread the USB end of the charging puck through the "mouth" of the dock.

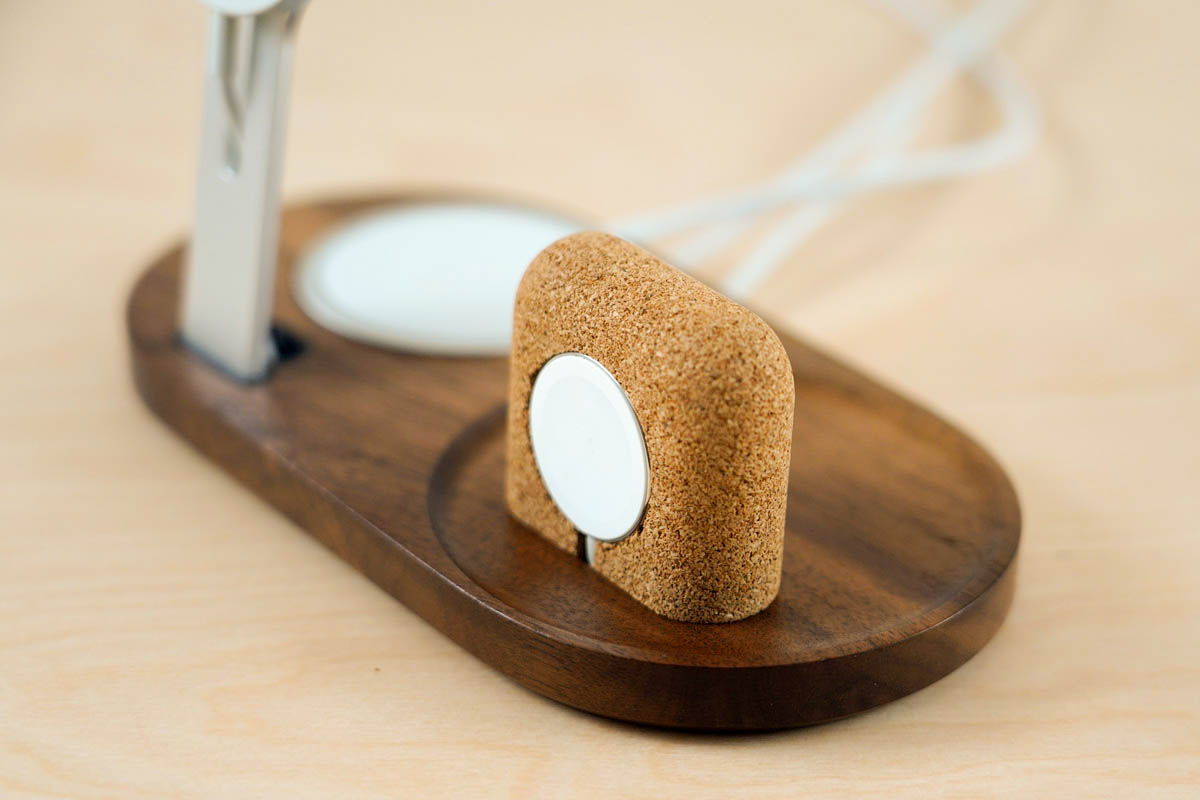

Insert the cork piece into the wood base. This is also tight, but the cork will give enough to allow for a snug fit.

Step 5: Mount your dock.

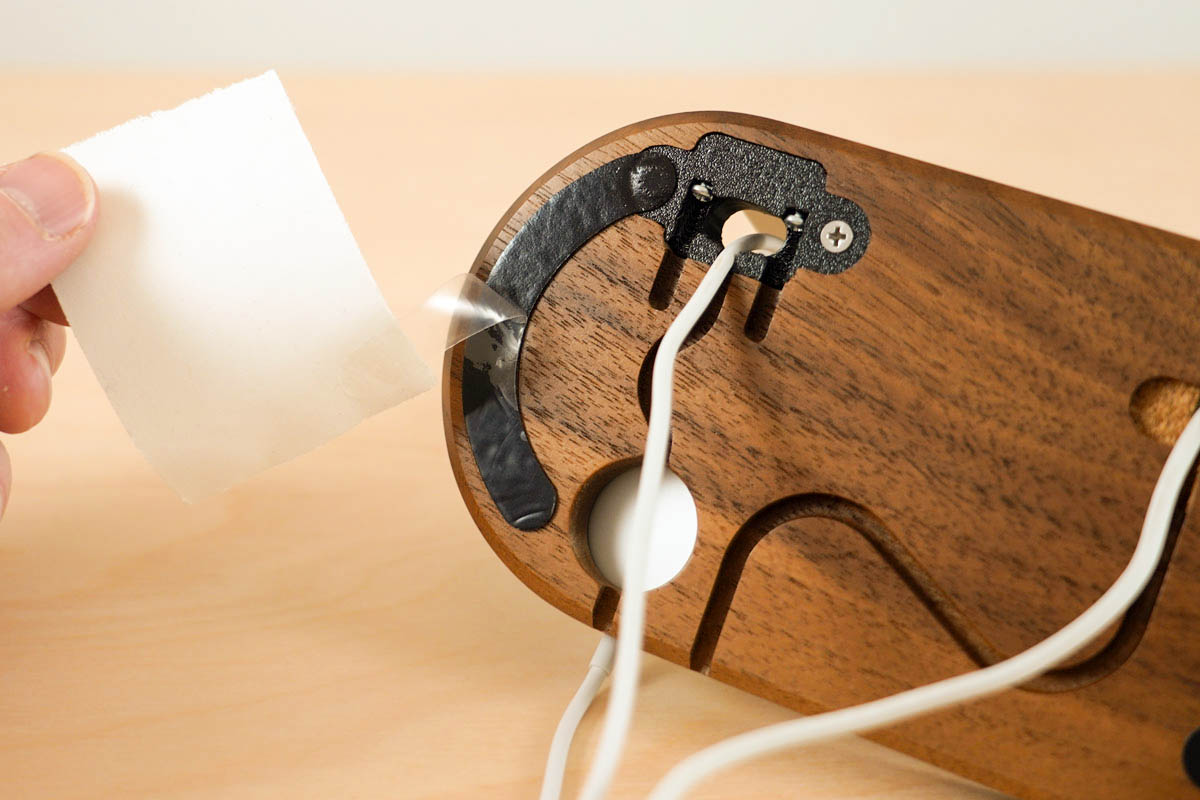

Remove the clear film from the bottom of the dock (again, tape is your friend).

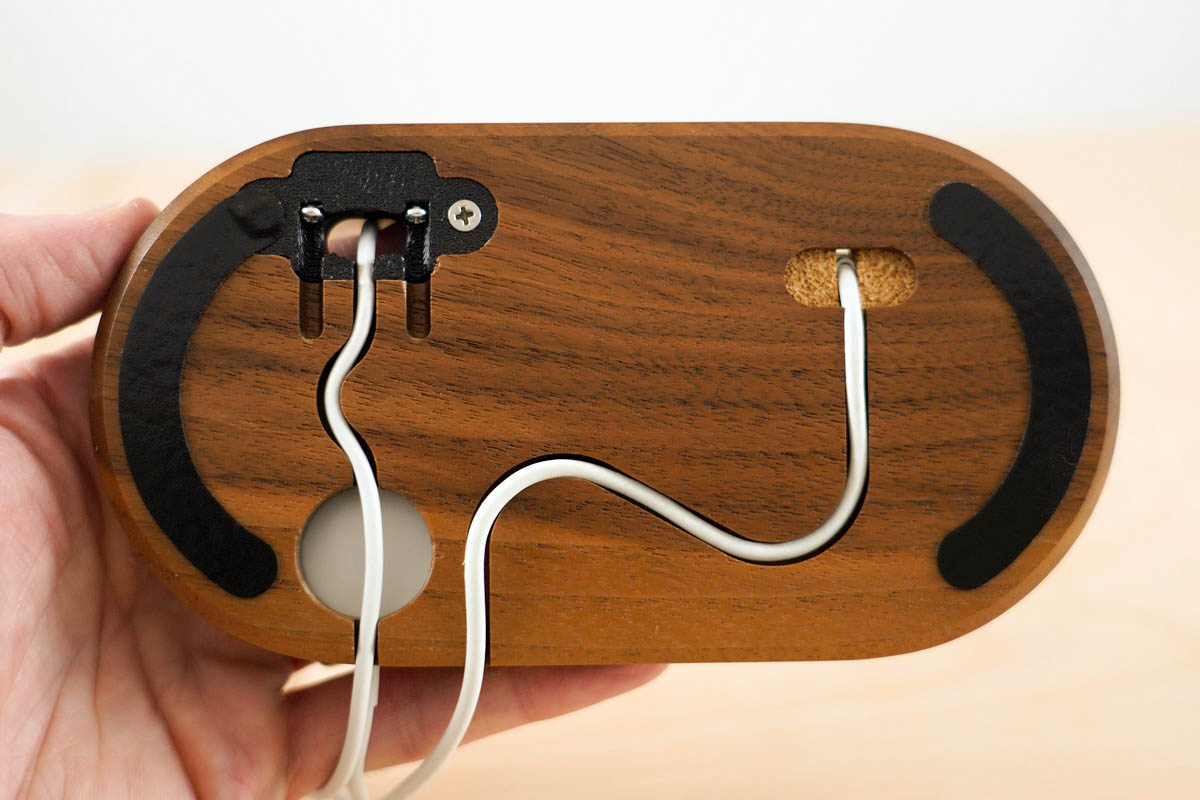

Press the cables into their respective cable channels on the bottom of the dock.

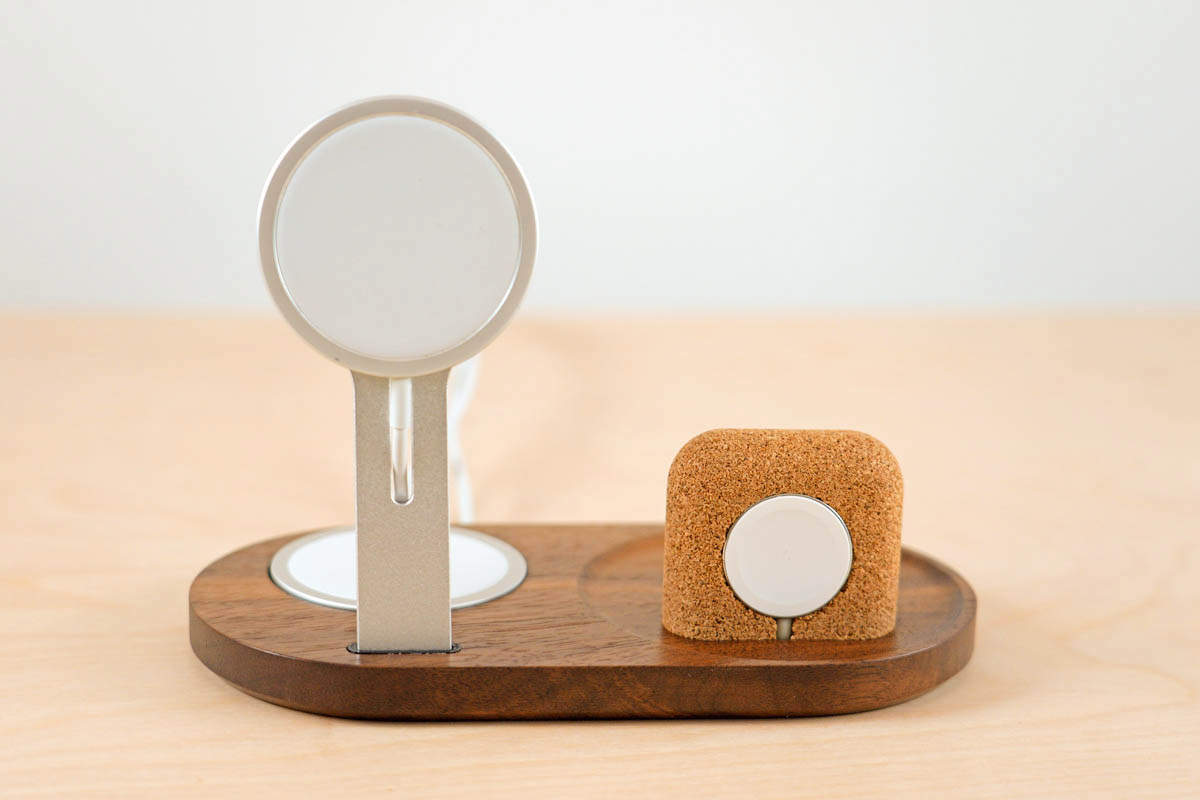

Position the dock where you'd like it and press down. You're finished! *Note* If the micro-suction pads ever lose their stickiness, you can "clean" them with a piece of tape to remove dust, or more thoroughly with soapy water.
